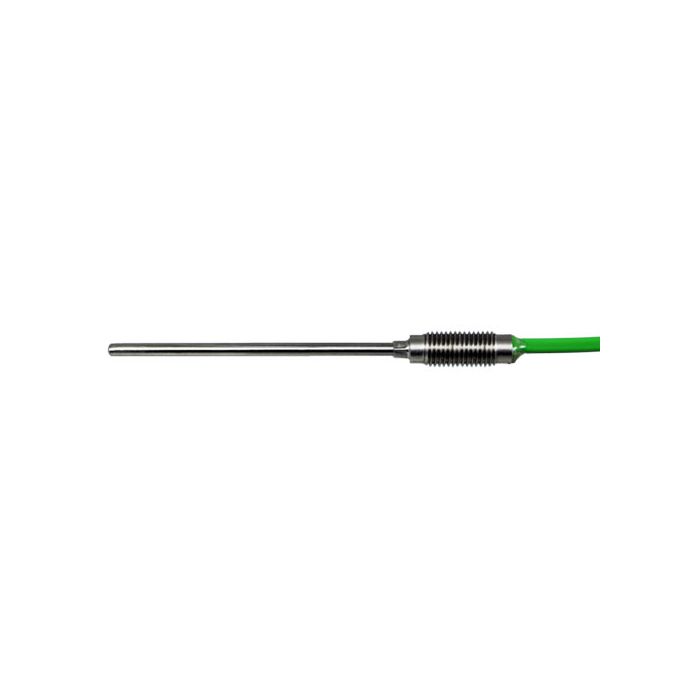

Mineral Insulated Thermocouple Sensor with M8 x 1mm Threaded Pot Seal
Available with probe diameters ranging from 1.0mm up to 3.0mm and supplied with an epoxy resin sealed M8 x 1.0mm threaded pot seal (8.0mm dia. x 19mm or 8.0mm dia. x 35mm long). High temperature resin also available for continuous use up to +220°.

Available with probe diameters ranging from 1.0mm up to 3.0m in lengths to suit your application requirements and supplied with an epoxy resin sealed M8 x 1.0mm threaded pot seal (8.0mm Ø x 19mm long).
The pot is epoxy resin sealed to prevent moisture ingress (resin rated for continuous use up to +135°C). A high temperature resin is also available for continuous use up to +220°C.
Various probe sheath materials are available and the sensors can be used in a wide variety of applications, with temperatures ranging from as low as -100°C and up to +1300°C.
The mineral insulated construction enables the sensors to be bent, twisted or flattened without impairing performance. The bending radius of the sheath is 10 x probe diameter; this can be reduced to 4 x, if a bending set is used.
Features
- 1.0, 1.5, 3.0mm ∅ probe options
- Epoxy resin sealed M8 x 1.0mm threaded pot seal (8.0mm ∅ x 19mm long)
- Accuracy to IEC 60584.2 Class 2 (Class 1 also available)
- Standard epoxy resin seal rated up to +135°C (+220°C also available)
- Colour coded to IEC 60584.3 (BS EN 60584.3)
