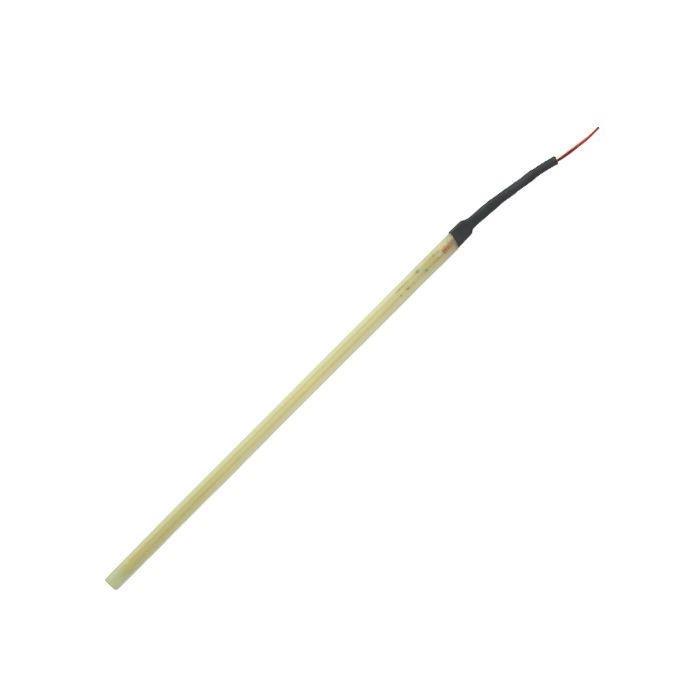

RTD (Pt100) Stator Slot Sensor
£76.20
£63.50
Code
PT300-10-24
- Buy 6 for £73.15 £60.96 each and save 4%
- Buy 11 for £70.10 £58.42 each and save 8%
Used to monitor the winding temperatures and prevent burnout. The laminated fibreglass construction is suitable for use continuously up to +150°C.
Stator slot Platinum Resistance Thermometer, used to monitor the winding temperatures and prevent burnout.
The laminated fibreglass construction is suitable for use continuously up to +150°C.
As standard the assemblies are supplied as class B with a 4-wire configuration (can be used as 2 or 3-wire). The sensors have a 5 metre long PFA insulated and sheathed cable which can be trimmed to suit the application. Custom manufactured assemblies available.
Features
- Used to monitor winding temperatures
- Suitable for use up to +150°C
- Supplied with 5m PFA cable
- 300mm (L) x 10mm (W) x 2.4mm (thick)
Bespoke dimensions can be supplied - contact sales for information
Bespoke dimensions can also be supplied - contact us for information
