RTD (Pt100/Pt1000) Sensor with Crimp Seal
As low as
£20.04
£16.70
Only %1 left
Code
PPC

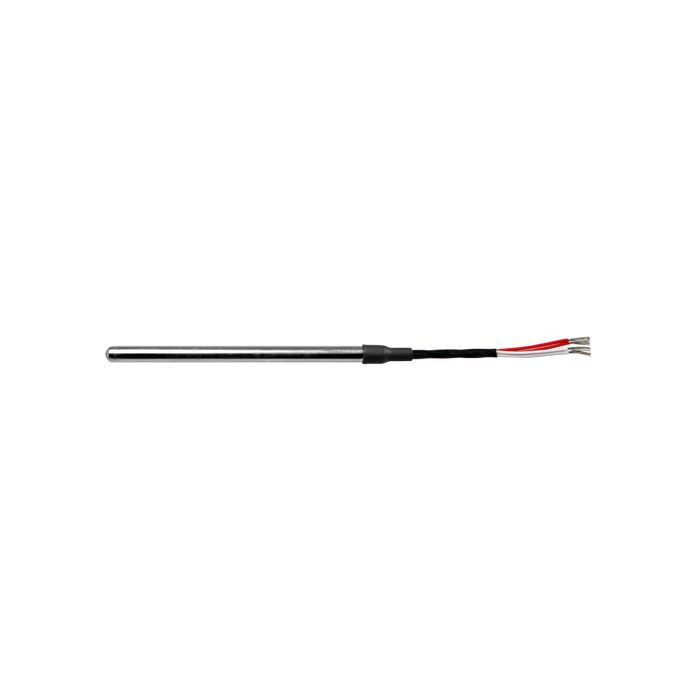

Low cost Platinum Resistance Thermometers, supplied with a crimp seal. Available with a 3.0mm, 4.0mm, 4.5mm or 6.0mm diameter 316 stainless steel probe.
Low cost Platinum Resistance Thermometers, supplied with a crimp seal. Available with a 3.0mm, 4.0mm, 4.5mm or 6.0mm diameter 316 stainless steel probe.
The sensors are supplied complete with a plain crimp seal that is heatshrink covered (7mm long / ±2mm) and with a 2 metre PFA insulated extension cable.
Supplied with a Simplex, 3-wire configuration.
The stem of the sensor is temperature rated -75°C to +260°C.
Features
- Pt100 or Pt1000 as standard (other elements available)
- 3.0mm, 4.0mm, 4.5mm or 6.0mm ∅ 316 stainless steel probe
- 2, 3 or 4-wire configuration
- Terminated with a plain crimp seal and, as standard, with a heatshrink strain relief (+120°C)
- PVC, PFA, Silicone Rubber, Fibreglass/SSB extension cable options
