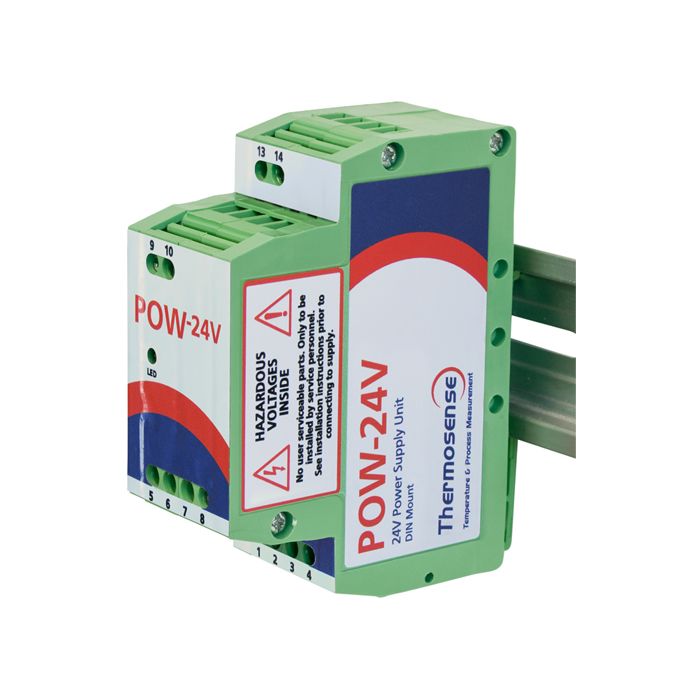

DIN Rail Mounting 24V Power Supply
£94.56
£78.80
Code
POW-24V
- Buy 6 for £90.78 £75.65 each and save 4%
- Buy 11 for £87.00 £72.50 each and save 8%
Stable DIN rail mounting 24V power supply, suitable for powering 4~20mA loops. Input voltage supply 85-265V AC/DC, output voltage 24V DC. 250V AC mains isolation.
The POW-24V power supply is designed differently from a general purpose power supply. Emphasis is placed on withstanding and rejecting EMI events, such as transients associated with close-by unsnubbered contactors etc. This is achieved by:
- Second and third stage filtering in both common and normal mode configurations
- Constructing the transformer with inherent shielding to reject unwanted signals
This combination of techniques eliminates the need for a Y cap between the primary and secondary, increasing the impedance to high frequency transients by an order of magnitude or more.
Features
- Second and third stage filtering in both common and normal mode configurations
- Constructing the transformer with inherent shielding to reject unwanted signals
