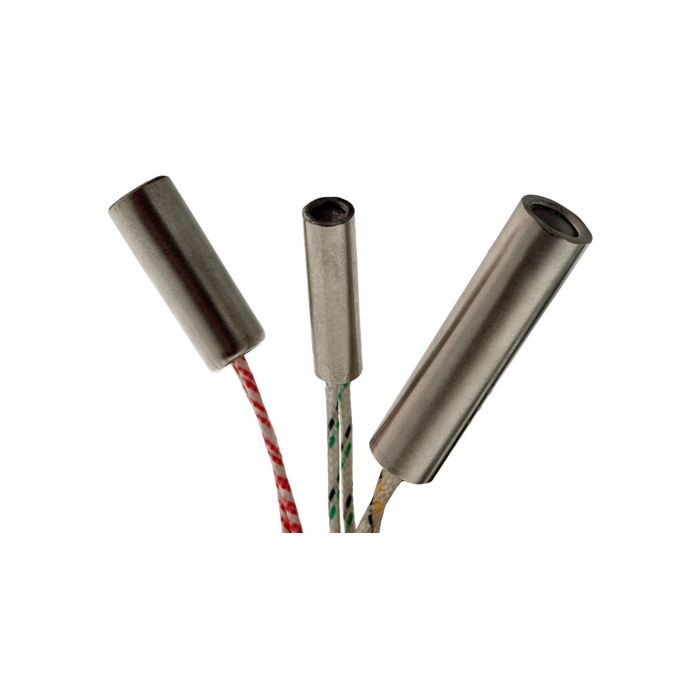

Cartridge Heater (230V)
Imperial and metric sized 230V stainless steel heaters, manufactured using fine heater element wire, helically wound and supported in a ceramic support tube to give maximum heat transfer to the outer shell. +650°C max surface temperature.
These stainless steel heaters are manufactured using fine heater element wire, helically wound and supported in a ceramic support tube to give maximum heat transfer to the outer shell.
The extension cables are 1000mm long with nickel conductors which are fibreglass/PTFE insulated, rated to +350°C.
As the surface temperature of the heater can reach a maximum of +650°C, cartridge heaters should be mounted in a reamed hole for maximum surface-to-surface contact. A temperature sensor mounted close to the bottom 1/3 of the precision drilled or reamed hole will ensure excellent temperature control and heater life.
Features
Manufactured to give maximum heat transfer to outer shell
Fibreglass/PTFE insulated conductors (rated to +350°C)
+650°C maximum surface temperature
230V as standard; other voltages available
Imperial and Metric OD options
More Information
Product Extra Information
Specification
Size
Imperial or Metric
Sheath Body and End Cap
Stainless Steel 300 series
Insulation
Ceramic former + pure magnesium oxide
Cable
1000mm extension lead, +350°C rated (Nickel Conductor/fibreglass/fibreglass silicone impregnated/PTFE impregnated)
Supply Voltage
230V AC Nominal (other voltages available)
Wattage
Nominal Wattage varies with voltage. W2=W1 (E2/E1)² (W1 = rated wattage, W2 = actual wattage, E1 = rated voltage, E2 = supply voltage)
Imperial Size Options
OD (inches) (D)
Length (inches) (L1)
Wattage (W)
Voltage (V)
Product Code
1/4
1.0
100
230
LCH1/4-1.0-100-230
1/4
1.5
150
230
LCH1/4-1.5-150-230
1/4
2.0
150
230
LCH1/4-2.0-150-230
1/4
2.5
200
230
LCH1/4-2.5-200-230
1/4
3.0
250
230
LCH1/4-3.0-250-230
1/4
4.0
300
230
LCH1/4-4.0-300-230
1/4
5.0
350
230
LCH1/4-5.0-350-230
1/4
6.0
500
230
LCH1/4-6.0-500-230
3/8
2.0
200
230
LCH3/8-2.0-200-230
3/8
3.0
400
230
LCH3/8-3.0-400-230
3/8
4.0
500
230
LCH3/8-4.0-500-230
3/8
5.0
500
230
LCH3/8-5.0-500-230
3/8
6.0
600
230
LCH3/8-6.0-600-230
3/8
8.0
1000
230
LCH3/8-8.0-1000-230
1/2
2.0
200
230
LCH1/2-2.0-200-230
1/2
3.0
250
230
LCH1/2-3.0-250-230
1/2
4.0
400
230
LCH1/2-4.0-400-230
1/2
5.0
500
230
LCH1/2-5.0-500-230
1/2
6.0
600
230
LCH1/2-6.0-600-230
1/2
8.0
800
230
LCH1/2-8.0-800-230
1/2
10.0
1000
230
LCH1/2-10.0-1000-230
5/8
2.0
300
230
LCH5/8-2.0-300-230
5/8
3.0
400
230
LCH5/8-3.0-400-230
5/8
4.0
500
230
LCH5/8-4.0-500-230
5/8
5.0
800
230
LCH5/8-5.0-800-230
5/8
6.0
1000
230
LCH5/8-6.0-1000-230
5/8
8.0
1500
230
LCH5/8-8.0-1500-230
5/8
10.0
2000
230
LCH5/8-10.0-2000-230
Metric Size Options
OD (mm) (D)
Length (mm) (L1)
Wattage (W)
Voltage (V)
Order Code
6.5
25
100
230
LCH6.5-025-100-230
6.5
40
125
230
LCH6.5-040-125-230
6.5
50
160
230
LCH6.5-050-160-230
6.5
60
200
230
LCH6.5-060-200-230
6.5
80
250
230
LCH6.5-080-250-230
6.5
100
320
230
LCH6.5-100-320-230
6.5
130
350
230
LCH6.5-130-350-230
6.5
160
450
230
LCH6.5-160-450-230
10.0
50
200
230
LCH10.0-050-200-230
10.0
80
400
230
LCH10.0-080-400-230
10.0
100
400
230
LCH10.0-100-400-230
10.0
130
500
230
LCH10.0-130-500-230
10.0
160
650
230
LCH10.0-160-650-230
10.0
200
800
230
LCH10.0-200-800-230
12.5
50
200
230
LCH12.5-050-200-230
12.5
80
250
230
LCH12.5-080-250-230
12.5
100
400
230
LCH12.5-100-400-230
12.5
130
500
230
LCH12.5-130-500-230
12.5
160
650
230
LCH12.5-160-650-230
12.5
200
800
230
LCH12.5-200-800-230
12.5
250
1000
230
LCH12.5-250-1000-230
16.0
50
320
230
LCH16.0-050-320-230
16.0
80
400
230
LCH16.0-080-400-230
16.0
100
500
230
LCH16.0-100-500-230
16.0
130
800
230
LCH16.0-130-800-230
16.0
160
1000
230
LCH16.0-160-1000-230
16.0
200
1600
230
LCH16.0-200-1600-230
16.0
250
2000
230
LCH16.0-250-2000-230
Note: other lengths, wattages and supply voltages are available. Contact us for further information.
