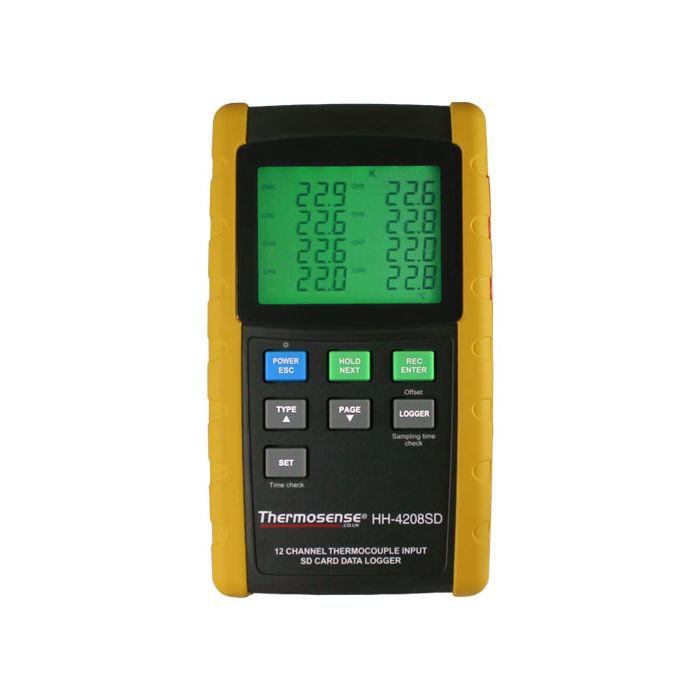

12 Channel Thermocouple Data Logger (SD card)

Twelve channel hand-held indicator/data logger with a large, easy-to-read, backlit LCD display (82mm x 61mm). Selectable between Thermocouple inputs K, J, T, R, S and E. Save up to 12 different temperature measurements concurrently with date and time information (year, date, minutes, seconds) and selectable sampling rate (automatic or manual: 1 second to 1 hour).

The HH-4208SD incorporates a page-select function and is capable of showing up to 8 channel readings on the screen at one time (CH1 to CH8 or CH9 to CH12).

Data can be logged in two ways:

Software: Data can be logged in real-time with the optional Data Acquisition software (HH-4208SW) with the unit connected to a PC via the USB or RS-232 cables*. Data is saved to the computer in .mdb (Microsoft Access) database format which can then be imported into Microsoft Excel.

SD Card: A 4GB SD memory card is supplied for storage of logged data without the need for additional software. Data is saved to the card in .xlsx (Microsoft Excel 2007 onwards) format. The card can then be plugged into a reader to retrieve the data. The SD card cannot be used with the Data Acquisition software. The 4GB SD card can store in excess of 30 million records.

The HH-4208SD is powered via 8 AA batteries or the optional mains power adaptor, and is enclosed within a rubber protective case.

Supplied with 4GB SD card (max 16GB), instruction manual and carry case.
