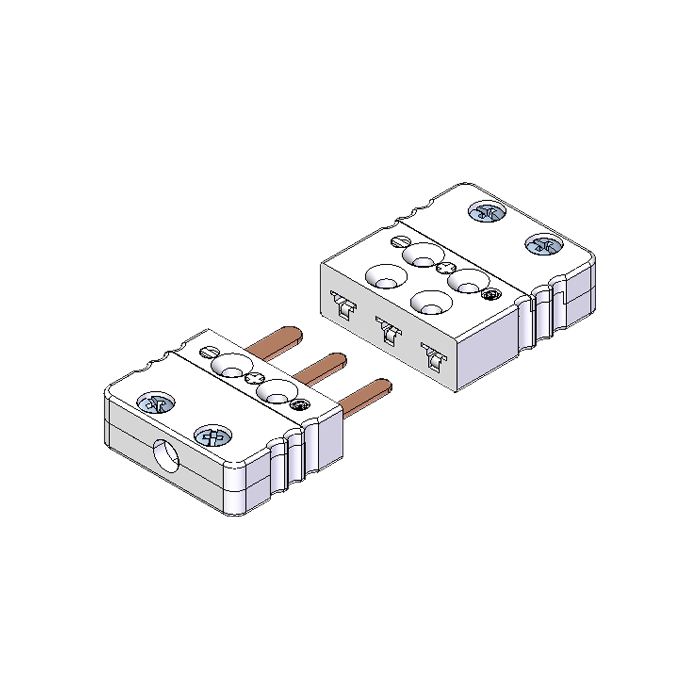

Miniature 3-Pin Thermocouple and RTD Connectors
As low as
£4.58
£3.82
Only %1 left
Code
FMPT/FMJT
Miniature connectors for thermocouple and RTD circuits. Flat pin design. Accepts wires up to 0.6mm (4.5mm cable dia. max). Third connection for ground, or continuous shield connection, or for 3-wire RTDs. -50...+220°C max.
Miniature 3-pin connectors for thermocouple and RTD circuits. Flat pin design.
Accepts wires up to 0.6mm (4.5mm cable dia. max).
Suitable for small wires and mineral insulated cables.
Third connection for ground, or continuous shield connection, or for 3-wire RTDs.
Temperature rating -50...+220°C max.
Features
Construction- Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts
- Polarized pins ensure proper connection
- Easy wire connection through sandwich construction
- Moulded barriers prevent short circuit
- Rugged one body design
- Accepts wires up to 0.6mm (4.5mm cable ∅ max)
- -50...+220°C Max
- Colour coded to IEC 60584.3 as standard. ANSI colours also available - contact sales
