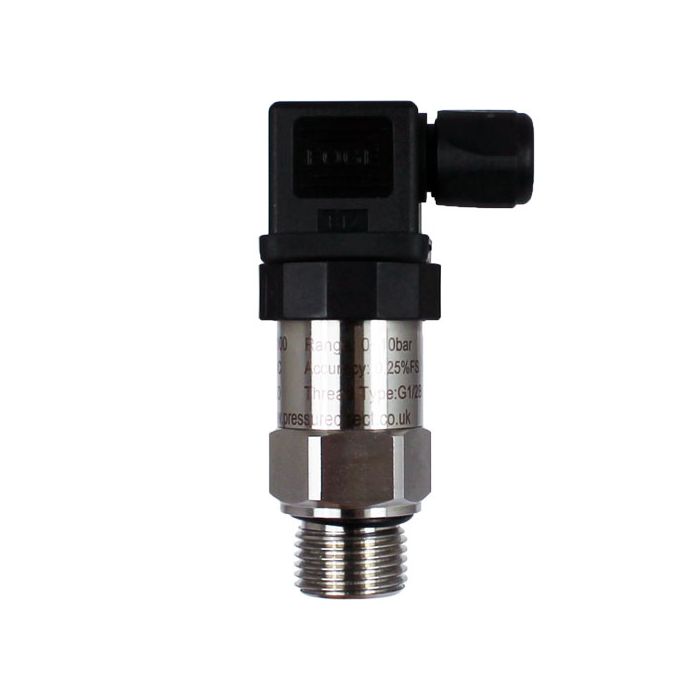

Pressure Transmitter (4~20mA, G1/2)
4~20mA Output. Threaded as standard 1/2 inch BSP. Available ranges from -1 to +600 bar. Designed for use in most industrial applications and suitable for the measurement of most pressure mediums. Pressure and vacuum options.
4~20mA Current Loop Output (pressure and vacuum options)
The APB range of 4~20mA high accuracy, low cost ceramic pressure transmitters are designed for use in most industrial applications and are suitable for the measurement of most pressure mediums.
The transmitters incorporate a high quality thick-film ceramic sensor and special amplified circuit. Output is configured to 4~20mA current loop. The pressure diaphragm is made from ceramic material and its wetted parts are made from 316L stainless steel.
Because of the thermal stability of ceramic and its thick-film resistance, the transmitter can be operated at a higher temperature range; at the same time, this also makes the zero and sensitivity thermal shifts over the whole operating temperature range of the transmitter very small.
Features
- 4~20mA current loop output signal
- G1/2 - 1/2" BSP(M) process connection
- Pressure and vacuum options
- Vast pressure measurement range
- Wide application scope and long service life
- Automatic testing and laser trimming compensating zero and sensitivity
- High accuracy and long-term stability
- Good anti-corrosion and anti-impact ability
- Available ranges from -1 to +600 bar
- IP65 rated
| Product Extra Information |
Specification
|
|---|
-
